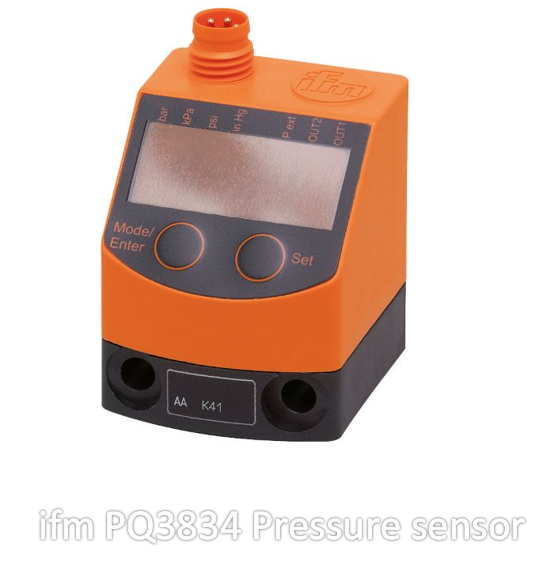

ifm PQ3834 Pressure sensor
ifm offers a wide range of electronic pressure sensors to meet the requirements of various applications.
All units have robust housings and do not require moving parts such as pistons or springs. The result being – the sensors are extremely shock and vibration resistant and operate without any wear or maintenance.
The sensors are resistant to dynamic pressure peaks and guarantee high overload resistance even in the case of extreme pressure peaks that occur for example with fast closing valves.
Units with wire strain gauge in thick-film technology on a stainless steel measuring cell are distinguished by their very compact and robust design, and can be used in almost all industrial areas.
The welded stainless steel measuring cell without any seals ensures a high degree of safety, in particular for all applications with gas pressures of up to 600 bar as well as in air-conditioning and refrigeration technology where aggressive coolants (freons) are used.
The PQ series pressure sensors are designed to monitor system pressure in pneumatic and compressed-air networks of machines and plants. The sensors can be used for both relative and differential pressure measurement. This makes them particularly suited for monitoring of filters for soiling or clogging.
The measuring cell is insensitive to liquids or deposits that might occur in the system. It is overload protected and highly accurate. A 4-digit LED display, which can be seen from a distance and easily read, and two pushbuttons allow easy set-up, maintenance and operation of the sensor.
The display can be switched from the indication of “red” to an alternating indication of “red-green”. So, switching states can be highlighted or an independent colour window can be created.
Sensors with analogue output can also be configured via IO-Link, e.g. using a USB interface. The LINERECORDER SENSOR software is used to visualised, transfer and archive parameter sets.
DBI Control have recently used the PQ3834 Pressure sensor in a UV Mass Base Rim Coating System that is being shipped to the Czech Republic. Some of the features are …
- Reliable monitoring of the system pressure in pneumatics and in compressed air systems
- Very high overpressure and vacuum resistance
- Clearly visible slanted LED display
- Red/green display for clear identification of the acceptable range
- With programmable switching output and analog output
If you want to find out more information about the ifm PQ3834 Pressure sensor, or any other ifm products, call 01244 288138 or email info@dbicontrol.co.uk to speak to one of our team.
