An MCB is crucial to protect any electrical circuit from damage caused by short circuit or overload.
Whenever overload of the electrical wiring is detected, a circuit breaker will very quickly cut the power until the problem can be detected, analysed and fixed.
Once the issue has been identified, they can be easily reset to resume normal operation after tripping.
Each miniature circuit breaker typically has its own circuit to maintain. For example, one may control the downstairs lighting and another the upstairs.

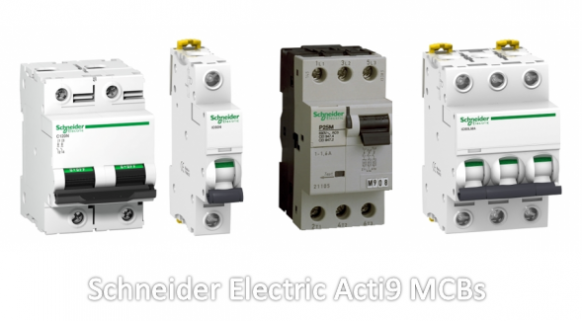

Schneider Electric has a wide range of Acti9 MCBs to choose from, depending on the customers’ requirements…
Acti9 iDPN (MCBs up to 40A phase-neutral) – Highly flexible, robust and easy-to-use overcurrent circuit breakers are designed to provide much needed protection in residential and small building applications. Option to add auxiliaries for remote monitoring and control, and to add RCCBs. Easy to install and disassemble with comb busbar in place thanks to top and bottom latches.
Acti9 iC60 (MCBs up to 63A) – Giving you absolute peace of mind when it comes to circuit protection and continuity of service, the miniature circuit breakers are especially ideal if you are working within polluted environments and networks. Easy installation, easily identifiable part numbers and highly durable with robust connections that provide twice the standard lightening torque.
Acti9 C120 (MCBs up to 125A) – DIN rail MCB offering circuit protection against short-circuit and overload currents. Suitable for isolation in compliance with IEC 60947. Provide maximum safety and continuity of service while minimizing service and intervention time. Suited to higher rating applications, e.g. industrial and commercial buildings.
Acti9 P25M (Motor protection circuit breaker up to 25A) – Use the motor protection circuit breaker up to 25A to benefit from more simplicity, easy installation and a range of features including optional auxiliaries, thermal trip and more.
Acti9 NG125 L-MA (Motor starter protection up to 80A) – This range of DIN rail circuit breakers combine the high performance and robustness required in the most demanding industrial applications.
Acti9 iC60 L-MA (Motor starter protection up to 40A) – This DIN Rail circuit breaker range offers extensive features that provide maximum safety and continuity of service while minimizing service and intervention time.
Acti9 NG125 (High performance MCBs up to 125A) – Enhancing protection in industrial and tertiary buildings, these MCBs provide you with optional auxiliaries, a choice of breaking capacities and tripping curves, and come fully certified by national official authorities.
If you are interested in Schneider Electric Acti9 MCBs, or any other Schneider Electric products, please call 01244 288138 or email firstname.lastname@example.org today and speak to one of our team members to get a price and availability.
