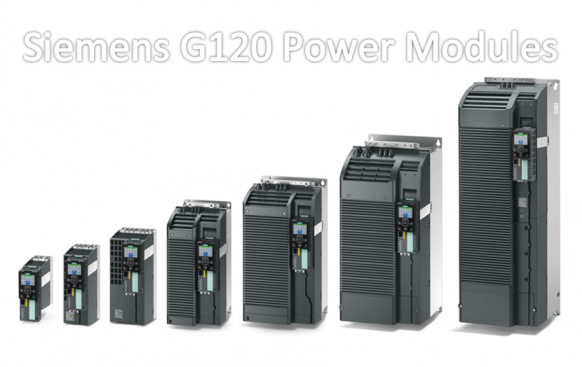

Siemens G120 Power Modules
DBI Control has recently been working on building and installing several Decorator Machines; applying 8 colours and varnish at the pace of 2000 cans per minute. A key component that has always been included is the Siemens G120 Power Module.
Siemens G120 is the modular converter system that addresses the widest range of requirements. Its modular design and wide range of power ratings – extending from 0.55 up to 250kW – always ensures that you can configure up to the optimum converter for your particular application.
The converter series is available in three voltage variants for connection to 200 V, 400 V and 690 V power supply networks. The module SINAMICS G120 converter system comprises the following components:
- Power Module – General machine building with or without mains feedback
- Control Unit – Integrated safety technology with or without position capability
- Optional Operator Unit – Suitable accessories such as operator panel and system components
Technical data includes …
· Voltage | · 1/3AC 200 … 240 V +/- 10 % 3AC 380 … 480 V +/- 10 % 3AC 500 … 690 V +/- 10 % |
· Power range | · 0.55 kW – 250 kW (LO) |
· Degree of protection | · IP20 |
· Environmental class | · Class 3C2, (3C3 with SIPLUS) |
· Ambient temperature | · 0 to 50°C |
· EMC | · According to IEC 61800-3 up to Category C2 |
· Standards | · CE, UL, cUL, c-Tick |
· Safety Technology | · Safety Integrated: STO (SIL 3, PL e, Kat. 3), SS1, SBC, SLS, SDI, SSM, PROFIsafe |
· Communication | · PROFINET, PROFIBUS, USS, Modbus, Ethernet IP, BACnet |
· Control procedure | · U/f, Flux Current Control, vector control with and without encoder |
· Functions | · Basic positioning function with Epos, regenerative capability through efficient infeed technology (Power Modules PM250 only), PROFIenergy, PROFIdrive |
Integrated software supports user-friendly selection, commissioning and operation. The SINAMICS G120 can not only be set up easily, but provides superior usability already during the commissioning phase and later during operation. The integrated software makes it possible for …
- Convenient commissioning – Using SINAMICS Startdrive as part of the TIA portal makes commissioning a secondary issue
- Configure systems for free – The SIZER engineering tool significantly facilitates the technical configuration of low-voltage drive systems
- Application examples – Practical applications on SINAMICS converters and SIMATIC Controllers
If you have any questions regarding Siemens G120 Power Modules or any other Siemens products, our team at DBI Control would be more than happy to help. Call 01244 288138 or email info@dbicontrol.co.uk to find out more.
