IDEM Safety GLS Guardian Line Standard Duty Rope Switch
Designed to be mounted on machines and sections of conveyors which cannot be protected by guards.
In contrast to traditional mushroom head type emergency stop buttons, Grab Wire Safety Rope Switches can initiate the emergency command from any point along the installed rope length and provide robust Emergency Stop Rope Pull protection for exposed conveyors or machines.
In combination with a dual channel safety monitoring relay IDEM’s Guardian Line Series Grab Wire Safety Rope Switch System can be used as emergency stop devices monitored for up to PLe in acc. with ISO13849-1.
All ranges conform to ISO 13850 and IEC 60947-5-5 and they have a positive mechanical linkage between the switch contacts and the wire rope. The switches have wire breakage monitoring.
On pulling the rope, anywhere along the length, the safety contacts are positively opened and the auxiliary contacts are closed. The switches are mechanically latched and can then only be returned to the operational condition by pressing the blue reset button as required by ISO 13850.

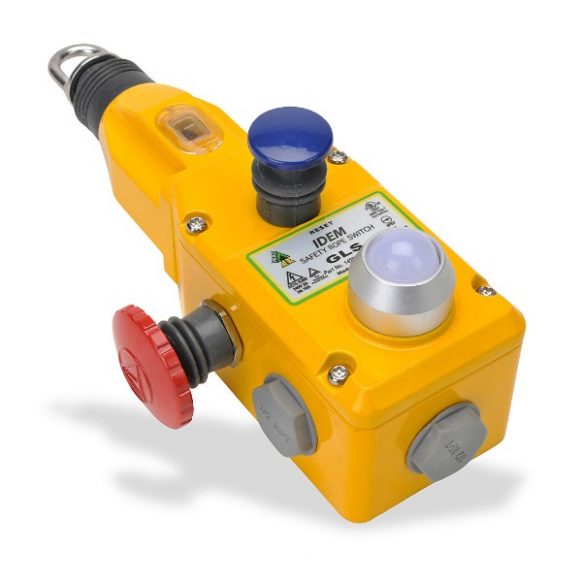

The IDEM Safety GLS Guardian Line Standard Duty Rope Switch is a general duty robust die-cast Safety Rope Pull Switch designed to protect conveyor lengths where protection is required up to 80 metres using two switches or up to 60 metres using a single switch.
They provide a reliable general purpose safety solution for conveyors and offer a choice of fittings depending upon the application.
They can be supplied with a mushroom type Emergency Stop Button which can be fitted to the side of the switch, to offer an extra traditional Emergency Stop function close to the switch, or can be fitted later after installation without any extra wiring.
A bi-colour LED is available to show switch status from a distance and they offer a choice of 3 pole, 4 pole or Explosion Proof contact blocks to ensure flexibility with all modern control applications.
Rugged integral sealing bellows means they can be high pressure hosed and the choice of materials makes them suitable for internal or external use.
If you are interested in the IDEM Safety GLS Guardian Line Standard Duty Rope Switch, or any other IDEM products, please call 01244 288138 or email info@dbicontrol.co.uk.
