IDEM Type 4 Safety Light Curtains
IDEM Type 4 Safety Light Curtains for finger and hand protection offer the user maximum accessibility to a machine or production line by removing or complementing the requirement for mechanical guarding.
Manufacturing processes that require operator access to the dangerous area can be performed quickly and with the minimum of interruption to production flow.
Machines of all sizes are well suited to guarding by light curtains since the high level of throughput requires the minimum of interruption when inserting and removing product.
Forklift truck access to conveyor lines is also an ideal application allowing fast and efficient access whilst maintaining a high level of safety integrity.
Idem Type 4 Safety Light Curtains have been designed to ensure protection of operators working in hazardous areas.
They operate with infrared beams that are evenly spaced at specific intervals.
- SLC-F (finger protection) beams spaced 14mm min. sensing. Type 4 safety light curtains.
- SLC-H (hand protection) beams spaced 30mm min. sensing. Type 4 safety light curtains.
When the beam detects a finger or hand entering the defined hazardous area, the protective equipment immediately stops the machine with a 14ms response or renders it harmless.

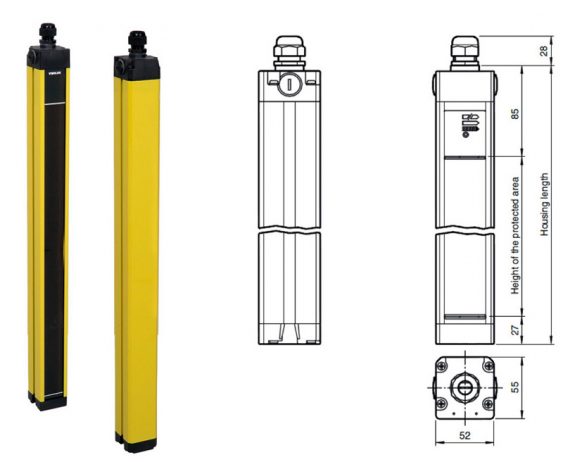

The extruded aluminium housing when coupled with the sturdy mounting brackets give a strong mounting arrangement suitable for areas where occasional vibration or knocks may occur.
A high reliability is achieved by implementing a fail-safe system: The devices are Type 4 and PLe/Cat4 to ISO13849-1.
Internal failure immediately deactivates the output signals as does any intrusion into the protective field.
They are cascadable and quick and easy to configure using DIP switches.
If you are interested in IDEM Type 4 Safety Light Curtains, or any other IDEM products, please call 01244 288138 or email info@dbicontrol.co.uk.
