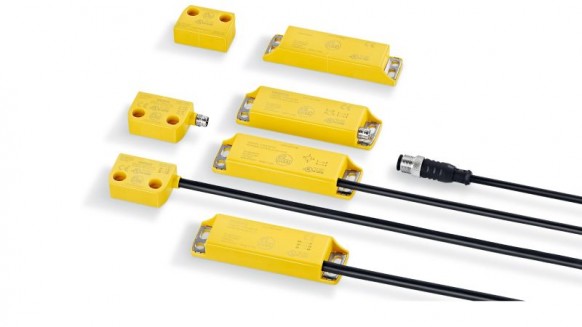

ifm’s MN Magnetic Sensors
For non-contact door monitoring – easy to install, hidden installation behind stainless steel is possible.
The magnetic sensors allow monitoring of the door status without contact.
It can reach PL e to ISO 13849-1 and SILCL 3 to IEC 62061 when used with suitable evaluation units.
Various connection versions with cable, M8 connector (4-pin) and M12 connector (4-pin) provide a standardised connection.
With the UL and EAC approvals your machine can be operated worldwide without any concerns.
The standard designs in a small and large version ensure various applications even if there is only little space.
In combination with for example the G1501S relay or the AC041S monitor the sensors have a TÜV approval up to SILCL 3 and PL e.
This safety level can also be attained with the ifm SmartPLC such as AC422S.
The sensors with 3 contacts (signal contact) provide the possibility of a series connection with the information which door was opened.
There are 2 contacts for the safety circuit and an additional signal for the non-safe controller.
Since the sensors can look through stainless steel or aluminium, hidden installation is possible thus improving protection against tampering.
Thanks to the metal reinforcement on the mounting holes of the MN5xxS safe and robust installation of the sensor is possible.
Stable switching characteristics thanks to broad switch on/ switch-off graph.
The sensor can be approached with the coded actuator from different directions.
Other features include …
- Activation from different directions aids installation
- Conceal behind stainless steel for enhanced tamper prevention
- Connect in series and still identify which door is open
- Meets the new interface description CB24I from ZVEI
- Meets highest safety level to ISO 13849-1 and SILCL 3 to IEC 62061
If you’re interested in finding out more about ifm’s MN Magnetic Sensors, or any other ifm products, please call 01244 288138 or email info@dbicontrol.co.uk.
