Texa EGO06BT1B Cooling Units
Texa is a global leader in climate control specialising in control panel cooling needs, and providing air conditioning, ventilation and accessories for panel manufacturers all over Europe.
They produce a series of climate control products to suit all cooling needs, and one of the most popular is the EGO – Cooling units for door or wall mounting.
The quick assembly, reliability, minimised maintenance and optimum design are the criteria used in the EGO cooling unit series. The range of powers covers the majority of applications for cooling electric enclosures in an extremely compact package.
The installation is very quick thanks to the simplicity of the holes to be drilled on the enclosure panel and to the fixing system. They all lend themselves to easy and safe electrical connection by means of rapid connectors which are inserted into the back of the unit.
The internal enclosure air is sucked up from the top of it, cooled inside the cooling unit and let back into the enclosure with a high-speed flow aimed towards the bottom. This ensures optimum cooling of the whole panel and puts a stop to any hot points of the electronic components.
All the cooling units feature heat exchange surfaces designed to prevent clogging by solid contaminants in the ambient air. The condenser heat exchangers are protected by hydrophylic nano treatment that prevents dirtiness and corrosion.
They maintain high efficiency even when the environmental conditions are bad, thus reducing maintenance work drastically meaning that the cooling unit can work without a filter on the external air take.
The EGO Cooling units (from the EGO08 model upwards) are equipped with an integrated condensation evaporating system which remarkably reduces the installation costs. They are also designed to minimises disturbance caused by noise to ensure a quiet working place.
The EGO cooling units come in the standard orange peel effect in an epoxy powder paint, however on request other colours are available as well as stainless steel versions.

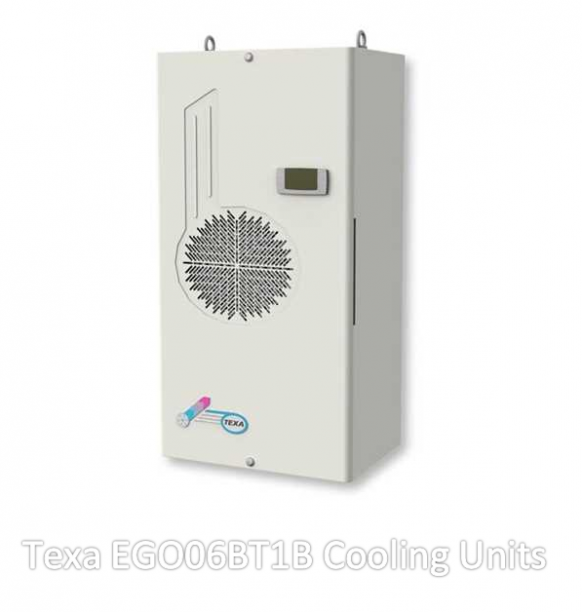

A popular EGO Cooling Unit that customers ask us to quote is the EGO06BT1B. This is the 640W 230VAC version which comes in RAL7035. The dimensions are 606mm (H) x 316mm (W) x 212mm (D) and it can be door or side mounted.
If you are interested in the Texa EGO06BT1B Cooling Units or any other Texa Cooling Unit, please get in touch with one of our colleagues today on 01244 288138 or info@dbicontrol.co.uk for some more advice on how to keep your panels temperature under control.
